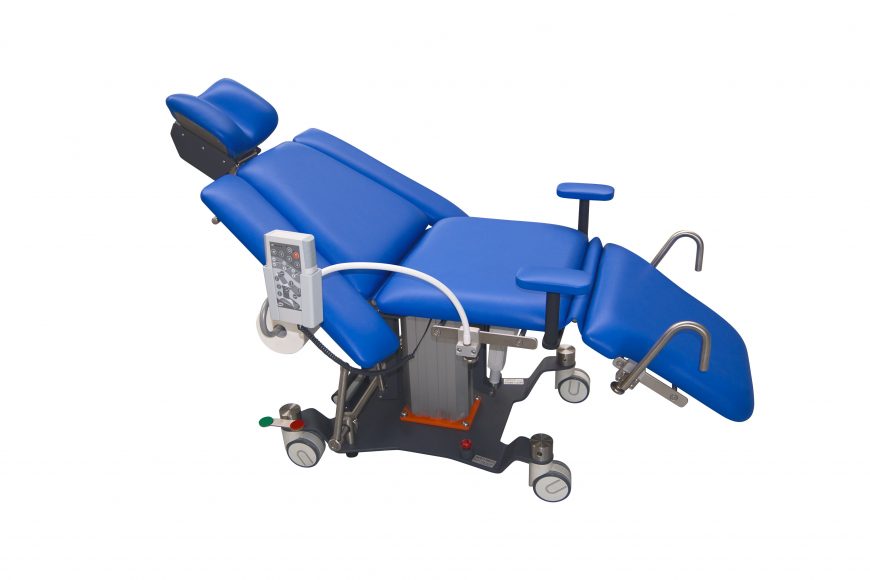

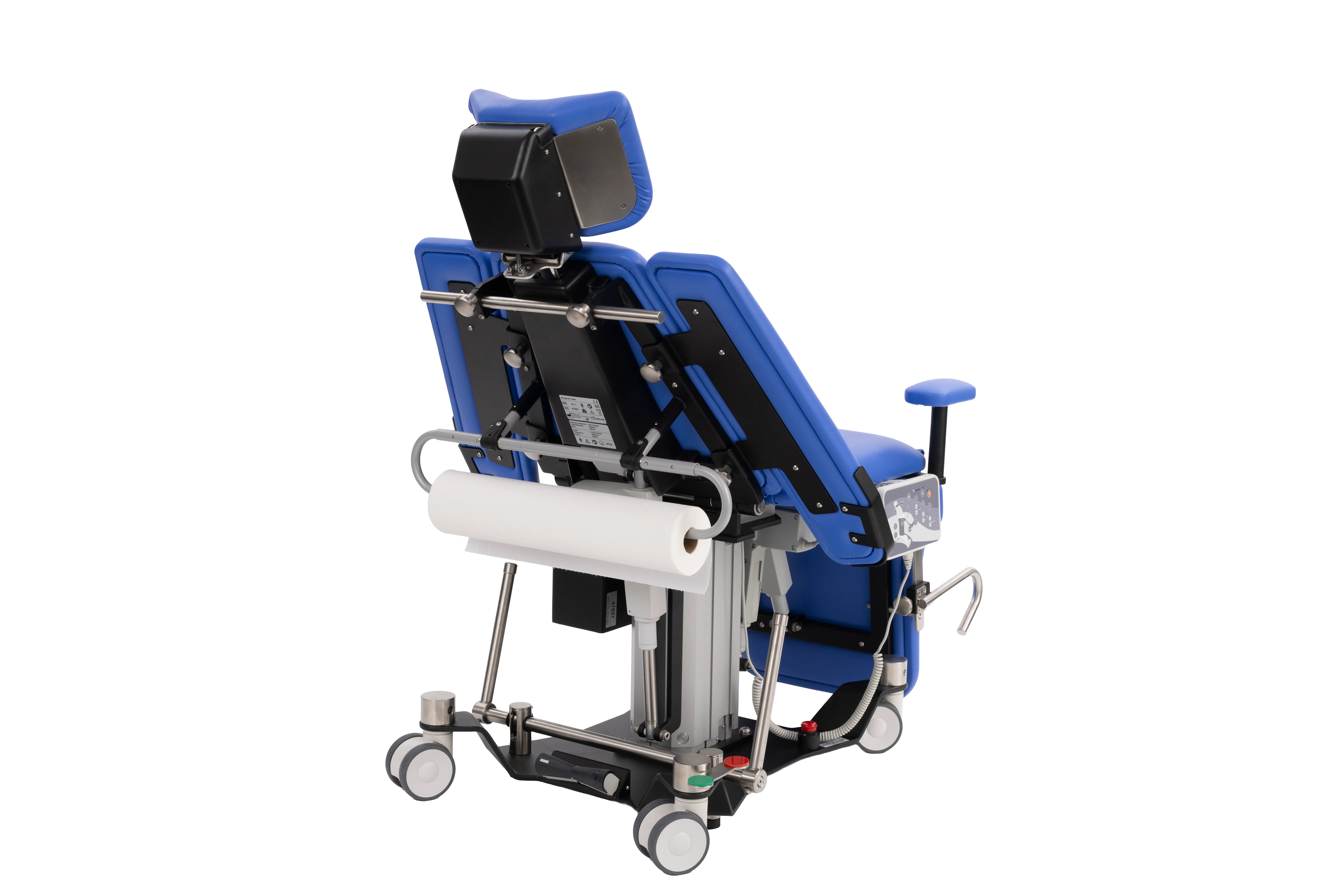

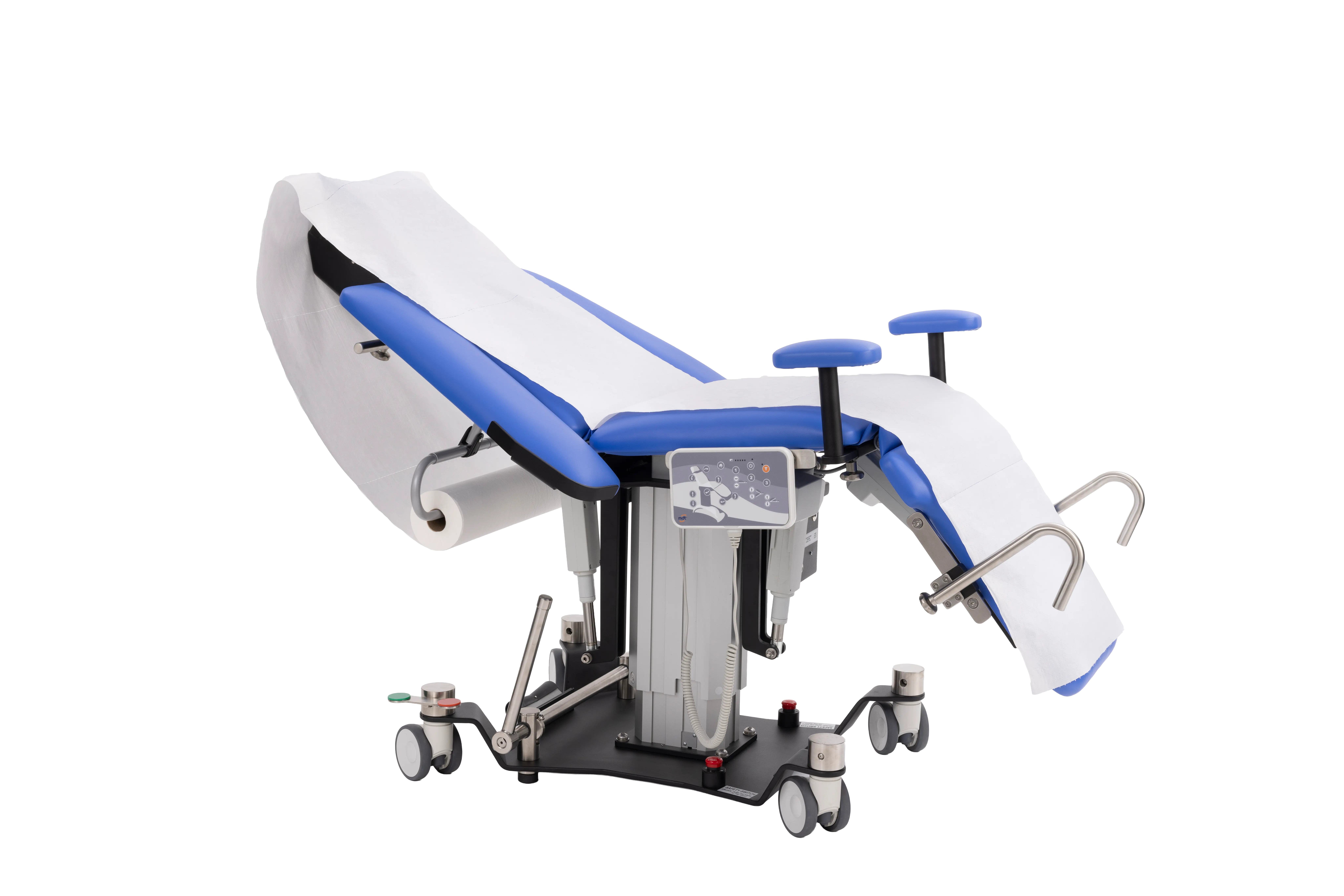

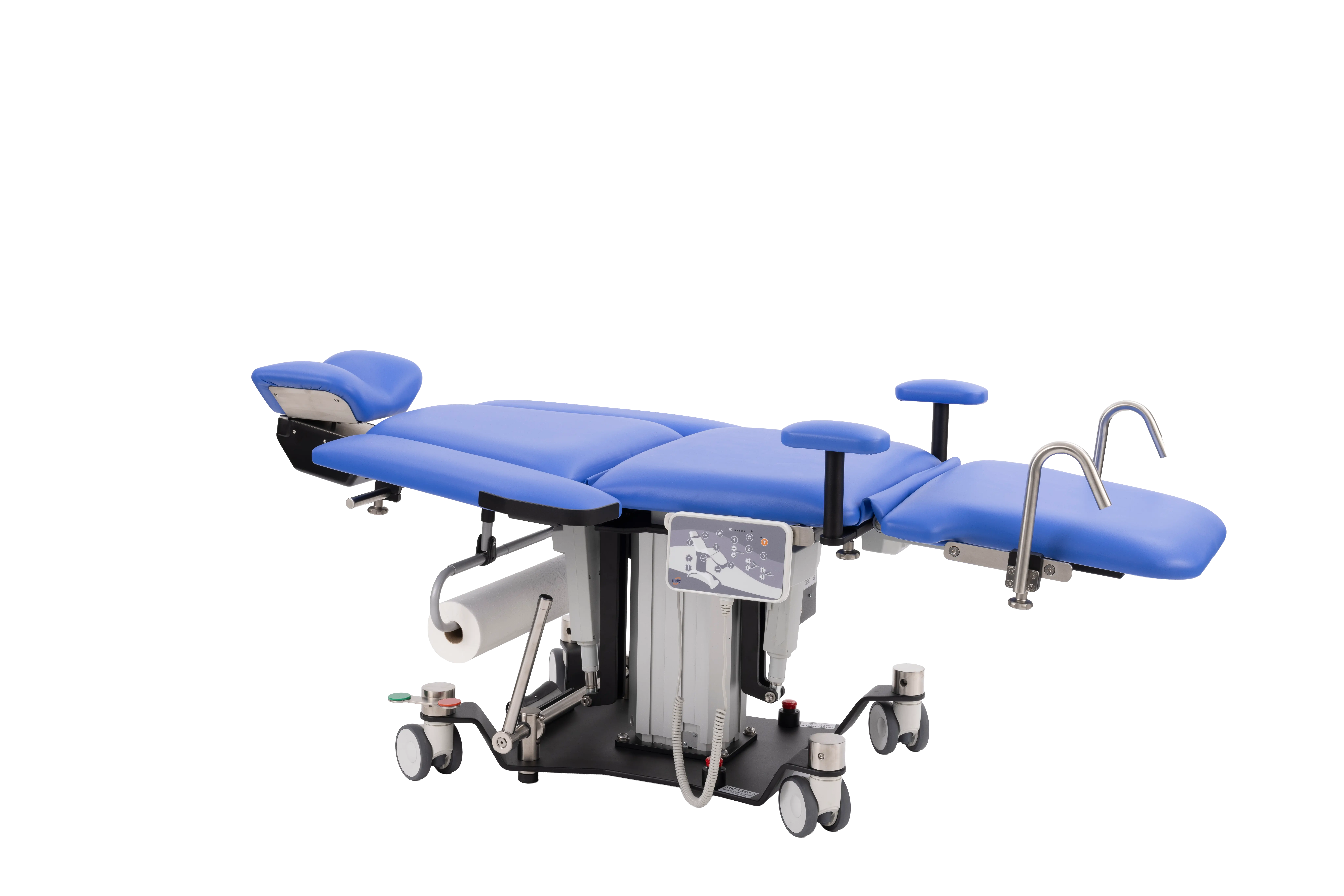

SC-1 Surgical Chair

SC-1 has been designed to ensure maximum comfort for the patients and surgeons during ophthalmic surgical procuderes.

Learn more about product
SC-1 Surgical Chair

Product tech spec

  • Full range of patient’s positioning (from sitting to lying) what gives unprecedented opportunity to position the patients at any age in a comfortable way
  • A unique design of the headrest gives the surgeon precise control over the patient’s head during surgical procedures
  • Detachable armrests and cushioning supports, as well as stainless steel push handles
  • Ease of movement with the patient on
  • Central locking gear which assures stability during the surgery
  • AC/DC power supply operated
  • IV pole (option)
  • A selection of non-stitched upholstery available without a surcharge


Lenght (flattened) 1 740 – 1 840mm
Lenght (sitting position) 1 120mm
Width 874mm
Height 1 240 – 1 390mm

Technical specification

Height adjustment range 600 – 750mm
Trandelenburg position ca. 15°
Max. load capacity 150kg
Input 100-240V AC, 50/60Hz
Battery pack 24V, 12Ah
Battery charging 24V ±0.5V, 1.2A
Working time up to 40h
Packaging 1 pallet, 120x80x160cm, ca. 160kg (gross)
