SMART PLUS
Smart design combined with ergonomics and a full range of optional equipment. Offered in right-handed setup only.
Files to download
Learn more about product
Product tech spec

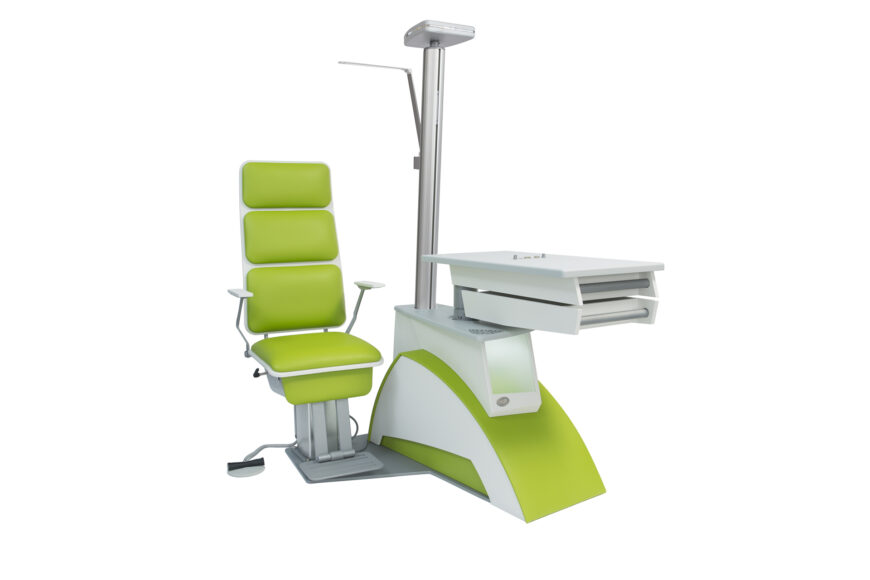

- SMART PLUS equipped with electrically elevated COMFORT chair (swivel and reclining systems – optional)
- 2 instruments sliding table top with optional electrical height adjustment
- Auto-refkeratometer, slit lamp DC power supply and adjusting knobs for a slit lamp illumination built-in the table top
- Simple connection of different types of slit lamps: LED / halogen
- Convenient control panel and easily accessible trial lenses tray with pivotal arm
- Diagonal aluminium post with illumination LEDs and chart projector shelf
- Wide selection of upholstery colours available without a surcharge
- Right-handed setup only
- Steel base powder coated
- EU Declaration of Conformity provided
Product options
- Reclination of COMFORT chair 33° (±1,5°)
- Rotation of COMFORT chair 85° (±3°)
- PREMIUM chair with foldable armrests and footrest, electrically elevated, reclining/swivel system built-in
- PA-1000 counterbalanced phoropter arm (equipped with gas spring)
- Table top electrically elevated equipped with safety device
- Customised main body colours
- Data transfer ports (USB 2.0, RS-232)
- CBS-1000 Control Box Stand
- Ophthalmoscope/retinoscope rack
Dimensions
| COMFORT CHAIR | PREMIUM CHAIR | |
|---|---|---|
| Width | 1 122 – 1 442mm | 1 107 – 1 442mm |
| Depth | 1 536 – 1 644mm | 1 596mm |
| Height | 1 786mm | |
| Chair working range | 493 – 693mm | 507 – 707mm |
| Table top dimensions | 900 x 440mm | |
| Table top height (fixed) | 878mm | |
| Table top working range (height adjustable) | 878 – 978mm | |
Technical specification
| Supply voltage | 100 – 240V AC, 50/60Hz |
| Power | 280VA |
| LED lamp power | 9W |
| Power supply cord | 3m with UniSchuko plug |
| Max. table top load | 50kg |
| Max. chair load | 150kg |
| Max. power of devices supplied from F-type sockets | 450VA |
| Power supply voltage at the table top sockets (SL/AUX1) | 2.5 – 24V DC |
| Supply current of the slit lamp fixator | 0-100mA (LED) or 0-250mA (bulb) |
| Packaging | 1 pallet, 120x80x160cm, ca. 175-225kg (gross) |
Available colours
Additional Safety Note 2023-04-24
Dear Customers,
According to the Instruction for use of all refraction units manufactured by MDT, in patient chairs equipped with such an option, the footrests are designed to be used as a support for the patient’s feet during the examination. The chairs are being delivered with the raised footrest only for transportation reasons, but upon installation should be left open and used always in this position with the patient sitting on a chair. It is not allowed to move the chair up or down, with the footrest in a raised position. While using electro-mechanical parts of the unit, the operator must observe the patient’s position on a chair and make sure neither head, hands or legs are in a conflict with any moving parts of the unit – including chair movement, its armrest (if applicable), table top or phoropter arm sliding and rotating.
