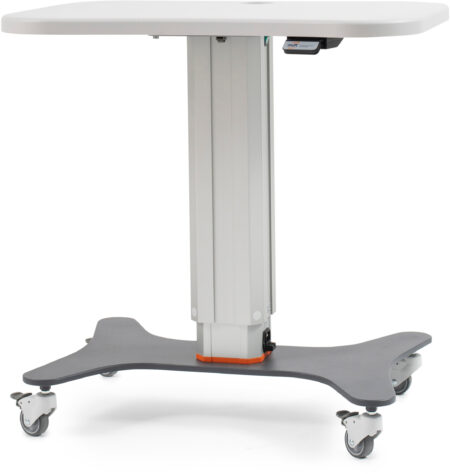

Ophthalmic table MD-1

Designed and manufactured for use as a robust base for one ophthalmic device – slit lamp, autoref/keratometer, air-puff tonometer, small perimeter, etc. Our tables are known as one of the most stable, silent and smoothly working ophthalmic tables on the market.
Ask about product
Learn more about product
Ophthalmic table MD-1

Designed and manufactured for use as a robust base for one ophthalmic device – slit lamp, autoref/keratometer, air-puff tonometer, small perimeter, etc. Our tables are known as one of the most stable, silent and smoothly working ophthalmic tables on the market.

Technical specification:

  • Table top height working range: 661mm-911mm
  • table-top dimensions: 660mm x 460mm
  • vertical movement range: 250mm
  • table top is made of MDF, varnished with polyurethane coatings in RAL 7047,
  • maximum load is 65 kgs.
  • all tables are equipped with MDT multi-voltage electric column made of anodised aluminium:
    • input: 110/230V AC (+/-10%), 50/60Hz,
    • power max. (without installed device/-s): 80VA
    • power consumption (with installed devices): 3A (230V AC), 6A (110-115V AC),
    • power load for the devices installed and powered cannot exceed: 450 VA
    • 2 pcs. of power sockets IEC C13,
    • 1 pc. of power supply cable (2,5m) in grey colour, UniSchuko plug,
    • 1 pc. of C13/C14 cable (0,8m) in black colour,
  • robust steel base, powder coated (RAL 7024), equipped with 4 lockable casters dia. Ø75 mm
    (MD, MD-1, MD-2, MD-V) or 4 lockable casters dia. Ø75 mm
  • conformity standard: EN 60601-1:2006 – class I, type B device; EC Declaration of Conformity provided
  • possible assembling special shelf for printer
  • * tolerance (+/-) 10mm, **5kg, ***1kg
