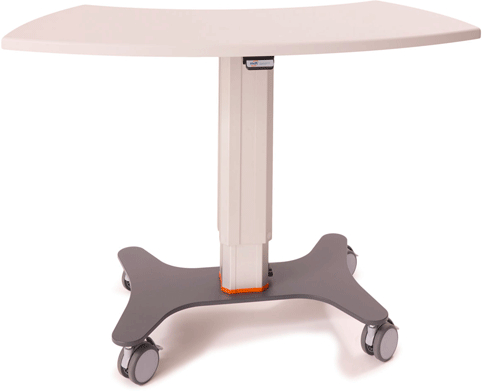

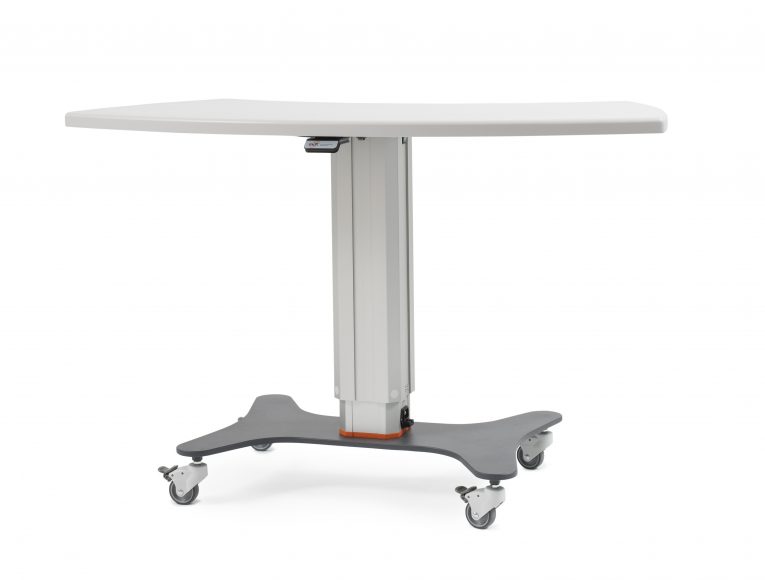

Ophthalmic table MD-V

Designed and manufactured for use as a robust base for two ophthalmic devices. V-shape design of a table-top allows for either a slit lamp with autoref/keratometer, or air-puff tonometer with small perimeter, or an ophthalmic laser with its console on top etc. Our tables are known as one of the…

Ask about product
Learn more about product
Ophthalmic table MD-V

Technical specification:

  • Table top height working range: 645mm-895mm
  • table-top dimensions: 1040mm x 550mm
  • vertical movement range: 250mm
  • table top is made of MDF, varnished with polyurethane coatings in RAL 7047,
  • maximum load is 65 kgs.
  • all tables are equipped with MDT multi-voltage electric column made of anodised aluminium:
    • input: 110/230V AC (+/-10%), 50/60Hz,
    • power max. (without installed device/-s): 80VA
    • power consumption (with installed devices): 3A (230V AC), 6A (110-115V AC),
    • power load for the devices installed and powered cannot exceed: 450 VA
    • 2 pcs. of power sockets IEC C13,
    • 1 pc. of power supply cable (2,5m) in grey colour, UniSchuko plug,
    • 1 pc. of C13/C14 cable (0,8m) in black colour,
  • robust steel base, powder coated (RAL 7024), equipped with 4 lockable casters dia. Ø50 mm
    (MD, MD-1, MD-2, MD-V) or 4 lockable casters dia. Ø75 mm
  • conformity standard: EN 60601-1:2006 – class I, type B device; EC Declaration of Conformity provided
  • possible assembling special shef for printer
  • * tolerance (+/-) 10mm, **5kg, ***1kg
